Propulsion Systems

PSLV Cut section

Liquid Stages of PSLV

PSLV is a 44.4 m high and 2.8 m diameter launch vehicle with a lift-off weight of 320 tonnes. The vehicle is configured in four stages; the second (PS2) and fourth (PS4) Stages are powered by Liquid Engines.
LPSC is responsible for the delivery of Control Power Plants for the first stage booster (PS1), earth storeable liquid stages such as second stage (PS2) and fourth stage (PS4).

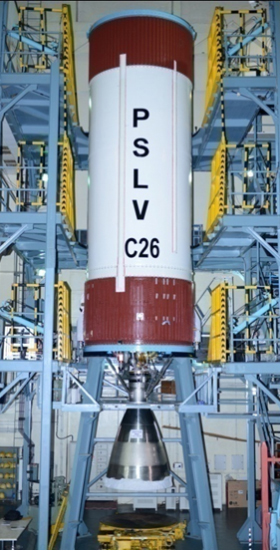

Second Stage of PSLV (PS2 Stage)

This stage is powered by a turbo pump fed, radiation cooled liquid engine (Vikas engine) using Nitrogen Tetroxide (N2O4) and Unsymmetrical Di-Methyl Hydrazine (UDMH) with 25% Hydrazine hydrate (This combination is referred as UH25) as propellants. During PSLV flight, this Stage gets ignited at an altitude of 50 km and boosts the rest of the PSLV stages and the satellite.

Specifications : PS2 Stage
Thrust 799 kN
Burn Duration 150 s
Propellants N2O4 / UH25
Propellant Loading 42 t
Stage Diameter 2.8 m
Stage Height 12 m

PS2 Stage consists of subsystems like Vikas engine, tankage with common bulk head, thrust frame and inter-stages, pressurisation systems, command system, fill and drain system, feed purge and flush system, pogo suppressor command system, gimbal control system, hot gas roll control system, pneumatic umbilical system, slosh baffles etc.

Fourth Stage of PSLV (PS4 Stage)

PS4 stage employs two identical pressure-fed, regeneratively cooled, high performance engines, each developing a thrust of 7.35 kN in vacuum. The engine works on a propellant combination of Mono Methyl Hydrazine (MMH) and Mixed Oxides of Nitrogen (MON-3) and burns for duration of 425 s.

Specifications (Twin Engine Configuration):
Thrust (vac) 7.35 x 2 kN PS4 Stage
Burn Duration 333 to 526 s
Propellants MON-3 / MMH
Propellant Loading 0.8 / 1.6 / 2.5 t
Stage Diameter 2.8 m
Stage Height 3 m

Secondary Injection Thrust Vector Control (SITVC) for PS1 Stage

PS1 stage is a solid rocket motor of 2.8 m diameter with 139 tonnes of Hydroxyl Terminated Poly Butadiene (HTPB) propellant and a composite nozzle of area ratio 8. The pitch and yaw control of the PSLV during the thrust phase of the PS1 motor is achieved by injecting aqueous solution of Strontium Perchlorate [Sr(ClO4)2] in the nozzle divergent at 35 percent of the length of the nozzle throat to exit.

Specification of SITVC
Propellant Sr(ClO4)2 SITVC

PS1 SITVC for pitch & yaw control (24 valves)
Flow rate 12 l/s
Side thrust 20 t max.
No. of injectors 24 in quadrants of 6 each

PS0 SITVC for roll augmentation (2 valves/motor)
Flow rate 3.7 l/s
Side thrust 600 kg

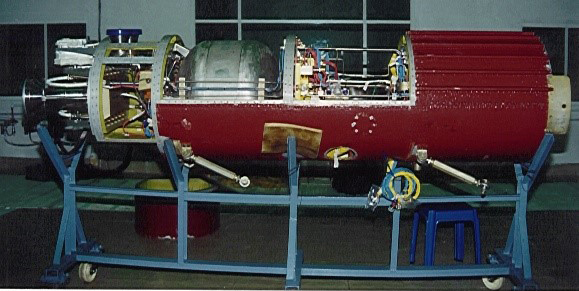

Reaction Control Systems (RCS) for PS1 Stage

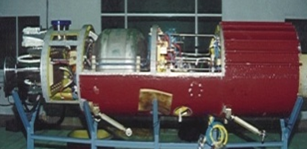

RCS for PS1 consists of two independent liquid engine packages mounted axially 180° apart at the circumference of the base shroud. RCS is designed to meet the control requirements during coasting phase of PS1.

Specification of PS1 RCS
Thrust Main engine 640 kgf PS1 RCS
ACS thrusters 150 kgf x 2
Propellants MMH / MON-3
Diameter 700 mm
Length 2.6 m

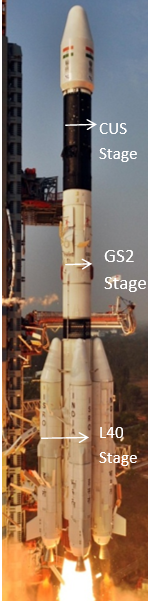

GSLV

GSLV is capable of launching 2200 kg class communication satellites into the Geo Transfer Orbit (GTO). GSLV is a three Stage vehicle. LPSC is responsible for the realisation and delivery of four L40 strap-on Stages, liquid second Stage and the Cryogenic Upper Stage of the GSLV.

Second Stage of GSLV (GS2 Stage)

The second stage of GSLV is similar to second Stage of PSLV with a nominal propellant loading of 42 tonnes. The stage makes use of high thrust Vikas engine.

Specifications:
Thrust 846 kN

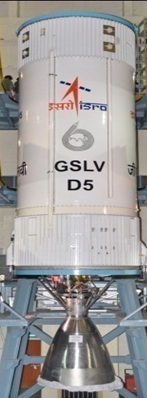

GS2 Stage
Burn Duration 143 s
Propellants N2O4 / UH25
Propellant Loading 42 t
Stage Diameter 2.8 m
Stage Height 12 m

Strap-on Stages of GSLV (L40 Stages)

GSLV is configured with four L40 strap-on liquid Stages which are derivatives of PS2 Stage and use one Vikas engine each.

Specifications:

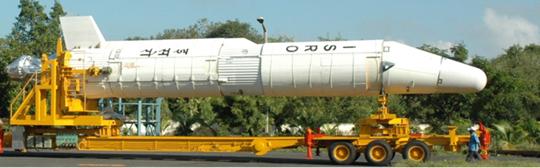

L40 Stage
Thrust 762 kN
Burn Duration 150 s
Propellants N2O4 / UH25
Propellant Loading 42 t
Stage Diameter 2.1 m
Stage Height 19.6 m

Cryogenic Upper Stage (CUS)

LPSC has developed the indigenous Cryogenic Upper Stage (CUS) meant to replace the stage procured from Russia and used in GSLV flights. The stage is powered by a regeneratively cooled cryogenic engine, which works on staged combustion cycle. The main Cryo engine and two smaller (cryogenic) steering engines together develop a nominal thrust of 73.6 kN in vacuum.

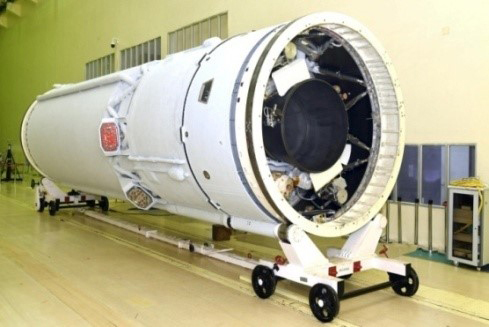

CUS Stage

Cryo Stage systems comprise of insulated propellant tanks, booster pumps, inter-Stage structures, fill and drain systems, pressurization systems, gas bottles, command block, igniters, pyro valves and cold gas orientation and stabilisation systems.
Indigenous cryogenic upper stage was successfully flight tested in GSLV D5 mission on 5th January, 2014.

Specifications:
Thrust 73.60 kN
Burn Duration 720 s
Propellants LH2 / LOX
Propellant Loading 12.5 t
Stage Diameter 2.8 m
Stage Height 9.85 m
LVM3

This new generation launch vehicle developed by ISRO can place 4000 kg class satellites in the GTO. LPSC is responsible for design, development and realization of Earth storable liquid core Stage (L110 Stage) and a powerful Cryogenic Upper Stage (C25 Stage).

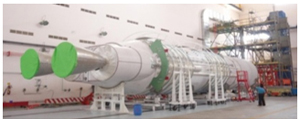

L110 Stage

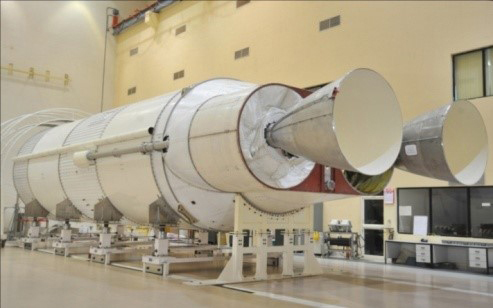

L110 Stage is the largest liquid Stage realized by ISRO. It is the core Stage of GSLV-Mk III which uses two high thrust Vikas engines to generate a combined thrust of 1692 kN for a burn duration of 194 s during the flight. The subsystems of the Stage include pressurization modules, command system module, remote fill and drain system, sit on umbilical system etc. Development Stage hot tests were successfully carried out for a duration of 200 s.

Specifications:
No. of engines 2 Vikas engines L110 Stage
Thrust 1692 kN
Burn Duration 194 s
Propellants N2O4 / UH25
Propellant Loading 110 t
Stage Diameter 4 m
Stage Height 21.26 m

C25 Stage

C25 Stage provides ~50% of the velocity required for achieving GTO for a 4000 kg class of satellite. C25 Stage uses liquid Oxygen and Liquid Hydrogen as propellant combination. Approx. 28000 kg of propellants stored in propellant tanks are delivered and integrated to pump fed engine (CE20) that develops 186 kN thrust in vacuum.

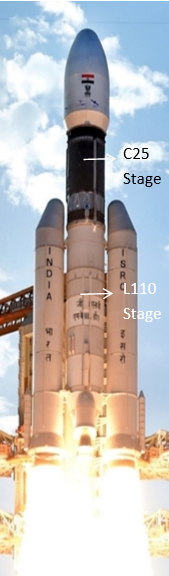

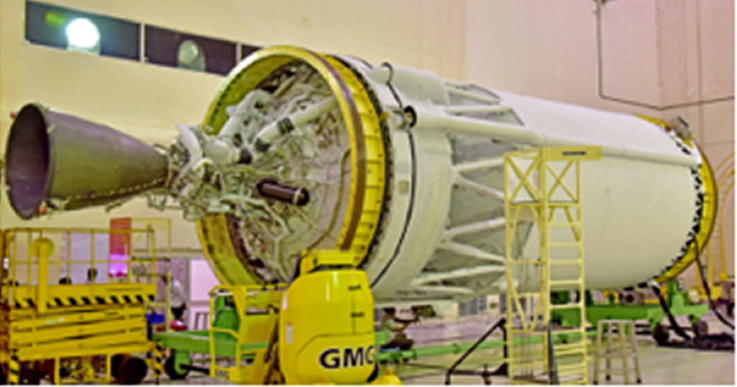

C25 Stage

CE20 engine uses independent turbo pumps delivering high pressure propellants to the regeneratively cooled thrust chamber. Small quantities of propellants from the pumps are diverted to Gas Generator where the propellants are ignited and the hot gases produced are used to drive the turbines. The Stage systems include propellant tanks, structures, flow control components, feed lines, mixture ratio control, Pogo control, engine gimbal control etc.
The engines are hot tested in ground including simulation of high altitude condition as part of development.

Specifications:
Thrust 186 kN
Burn Duration 640 s
Propellants LOX / LH2
Propellant Loading 28 t
Stage Diameter 4.0 m
Stage Height 13.5 m

C32 Stage

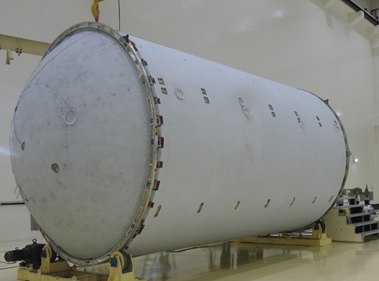

LPSC has undertaken the development and realisation of Cryogenic Stage with uprated thrust (22 tonne) cryogenic engine and higher propellant loading (32 ton). On induction of C32 stage, along with Semi-cryogenic SC120 Stage, LVM3 launch vehicle can place 5 tonne class satellite in GTO. Design, analysis & hardware realisation of C32 stage systems have been completed and fluid mock up is carried out.

Major hardware realized

LH2 tank

LOX tank


SSLV

Small Satellite Launch Vehicle (SSLV) is a three stage Launch Vehicle capable of launching ~500 kg satellite into 500 km planar orbit from First Launch pad (FLP), SDSC/SHAR. SSLV is configured with three solid propulsion stages and liquid propulsion based Velocity Trimming Module (VTM) as terminal stage for precise satellite injection. This vehicle provides low-cost access to Space, offers low turn-around time and flexibility in accommodating multiple satellites, and demands minimal launch infrastructure. SSLV is 2 m in diameter and 34 m in length with liftoff weight of ~120 tons.
VTM is planned for precise injection of satellite injection taking into account the performance deviations from the lower stages. It is also planned for roll control during the 1st stage as well as SS2 and SS3 thrusting phase. It is required for pitch/yaw and roll control during coasting phase between stages and during VTM phase. VTM is configured as blowdown bi-propellant system with 55 kg of MMH & MON-3.

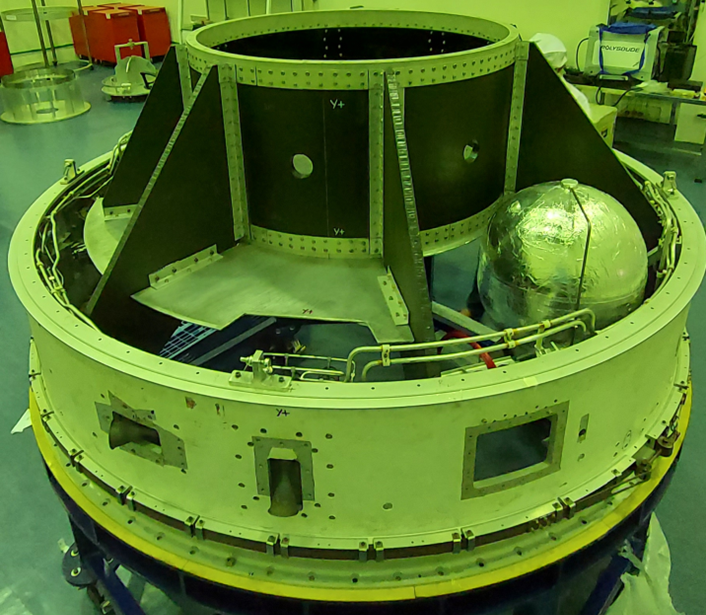

SSLV VTM

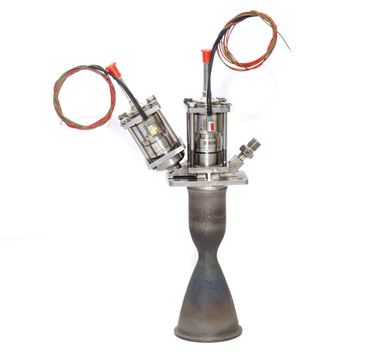

50N thruster for SSLV

LPSC develops the propulsion systems for GEOSAT, Remote sensing and scientific satellites of ISRO.

Indian National Satellite System (INSAT /GSAT)

Indian National Satellite System (INSAT) is a multipurpose satellite system for telecommunications, television broadcasting, meteorology, disaster warning and search & rescue. INSAT is widely used for interactive education, telemedicine, meteorological imaging and direct-to-community broadcast.

INSAT series of Satellites

INSAT / GSAT Propulsion System

The INSAT series of satellites require thrusters for both orbit raising and station keeping. LPSC has developed and delivers bi- propellant propulsion system for GEOSAT spacecrafts. Propulsion system comprises of two classes of bi-propellant thrusters – one Liquid Apogee Motor (LAM) for orbit raising and sixteen Attitude and Orbit Control System (AOCS) for station keeping. MON-3 and MMH propellant combination are used and are pressure fed from independent tank.
The LAM is used for raising the orbit of the satellite from highly elliptical GTO (200 x 36000 km) to geostationary orbit (36000 km circular).

Specification of LAM:
Thrust (vac) 440 N
Propellant MON-3 / MMH
Specific Impulse 315 s with AR:160 & 319s with AR 250
Engine Mass 4.5 kg for AR: 160 & 6.0kg for AR 250

10 N Thruster

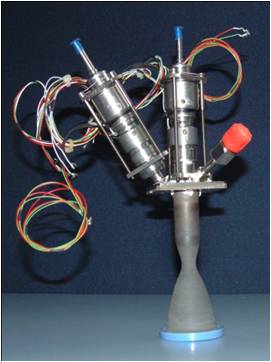

22 N Thruster

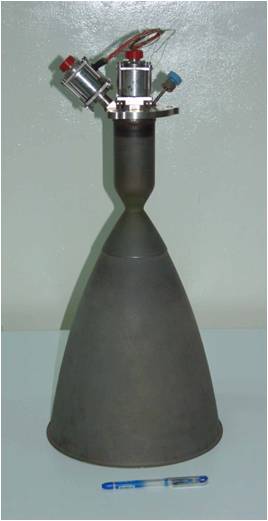

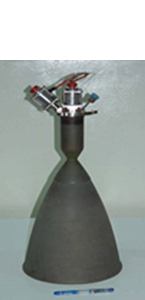

440 N LAM Engine
Specification of Bipropellant AOCS thruster
Thrust (vac) 22 / 10 N
Propellants MON-3 / MMH
Specific Impulse 285 s
Engine Mass 1 kg

In addition to this, LPSC provides propellant servicing for launch and support for on-orbit operation of the spacecraft propulsion systems.

Navigation with Indian Constellation (NavIC)

To meet the positioning, navigation and timing requirements of the nation, ISRO has established a regional navigation satellite system called Navigation with Indian Constellation (NavIC). NavIC was erstwhile known as Indian Regional Navigation Satellite System (IRNSS). NavIC is designed with a constellation of 7 satellites and a network of ground stations operating 24 x 7. Three satellites of the constellation are placed in geostationary orbit, at 32.5°E, 83°E and 129.5°E respectively, and four satellites are placed in inclined geosynchronous orbit with equatorial crossing of 55°E and 111.75°E respectively, with inclination of 29° (two satellites in each plane).

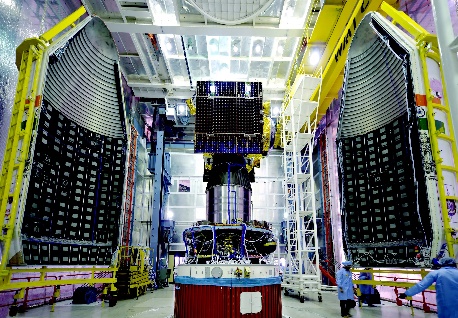

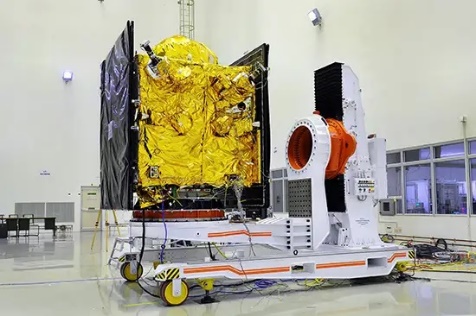

NavIC Propulsion System

The NavIC satellites propulsion system consists LAM engine for orbit rising and 12 nos. of 22N bipropellant AOCS thrusters for station keeping and associated propellant tanks, feedlines, gas bottles and flow control components. Six 22N AOCS thrusters in one chain with a corresponding configuration in another chain as redundant are assembled.


10 N Thruster

22 N Thruster

440 N LAM Engine

In addition to this, LPSC provides propellant servicing for launch and support for on-orbit operation of the spacecraft propulsion systems.

Earth Observation Satellites (EOS): Indian Remote Sensing Satellite System (IRS)

IRS system offers space-based data in a range of spectral bands, spatial resolution and swaths. The data is used for several applications covering agriculture, water resources, urban development, mineral prospecting, environment, forestry, drought and flood forecasting, ocean resources and disaster management.

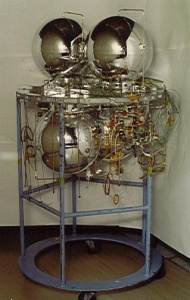

IRS propulsion system

IRS Series of Satellites

IRS Propulsion System

LPSC delivers the mono-propellant propulsion systems for IRS satellites. The IRS propulsion package consists of two types of mono-propellant catalytic thrusters for minor orbital corrections and station keeping/ attitude control, associated propellant tanks, feedlines and flow control components. Twelve AOCS thrusters with four 1 N and two 11 N thrusters in one chain with a corresponding configuration in another chain as redundant are assembled.


11N Thruster

1N Thruster
MONO-PROPELLANT THRUSTER – 11N (4 NO. PER FLIGHT)
THRUST 11 N
SPECIFIC IMPULSE 220 s
PROPELLANT N2H4
MASS <500g
AOCS MONO-PROPELLANT THRUSTER – 1N (8 NOS. PER FLIGHT)
THRUST 1 N
SPECIFIC IMPULSE 220 s
PROPELLANT N2H4
MASS <225g

In addition to this, LPSC provides propellant servicing for launch and support for on-orbit operation of the spacecraft propulsion systems.


Chandrayaan-1

ISRO undertakes scientific missions for research in areas like astronomy, astrophysics, planetary and earth sciences, atmospheric sciences and theoretical physics. The Liquid Propulsion Systems Centre (LPSC) is integral to the success of ISRO's major missions, providing cutting-edge propulsion technologies essential for mission-critical manoeuvres. Specializing in the development of liquid propulsion systems, LPSC designs, realizes and tests, engines and stages that power launch vehicles and spacecraft. In missions like Chandrayaan-1, 2 & 3, Mars Orbiter Mission, and Aditya L1, LPSC's propulsion systems enable precise orbital insertions, attitude control, and trajectory corrections. The center's advancements in cryogenic engines, bi-propellant engines, and electric propulsion are pivotal in enhancing ISRO's capability to undertake complex interplanetary missions and sustained exploration, reflecting LPSC's critical role in advancing India's space endeavours.

Chandrayaan-1 Mission:

Chandrayaan-1, India's first mission to Moon, was launched successfully on 22nd October, 2008 in PSLV C11. The spacecraft orbitted around the Moon at a height of 100 km from the lunar surface for chemical, mineralogical and photo-geologic mapping of the Moon.

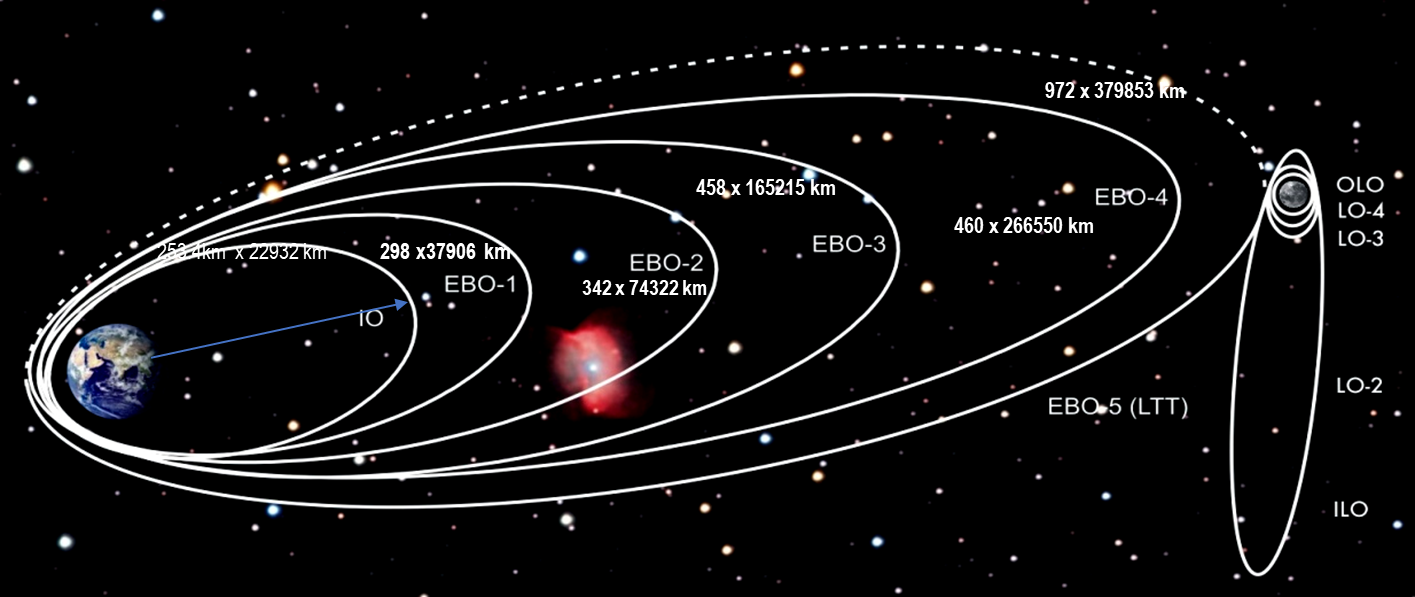

Chandrayaan-1 Orbit changes

PSLV C11
Major Contributions from LPSC:

The PSLV C11 placed the Chandrayaan-1 spacecraft precisely into geostationary transfer orbit (GTO) with an apogee of 22,860 km and a perigee of 255 km. LPSC delivered PS2 & PS4 Stages and five Control Power Plants (PS1 RCS x 2 Nos., PS1 SITVC, PS0 SITVC x 2 Nos.) for the PSLV C11. The details of above deliverables are:

  • PS2 Stage: The Stage is powered by Vikas Engine producing a thrust of 80t and has a propellant loading of 42t. The PS2 Stage operated for about 150s in this mission.
  • PS4 Stage: It is powered by two PS4 engines each 0.73t thrust and 2.5t propellant loading.

The control power plants provide the necessary control of the Vehicle (viz. Pitch, Yaw and Roll) during the PS1 regime. Two numbers of Roll Control System Packages, 2 Strap on SITVC (Side Injection Thrust Vector Control) systems and one PS1 SITVC system were used in this mission.

Bipropellant propulsion system of eight nos. of 22 N AOCS thrusters and one LAM engine were delivered and integrated by LPSC for Chandrayaan-1. LAM was fired successfully for ten times for a cumulative duration of 4589 s in this Mission.

Mars Orbiter Mission

Mars Orbiter Mission (MOM):

Mars Orbiter Mission (MOM), India's first interplanetary mission to planet Mars was launched on board PSLV C25 on 5th November, 2013. ISRO has become the fourth space agency to successfully send a spacecraft to Mars orbit.


PSLV C25

The PSLV C25 placed the Mars Orbiter Mission spacecraft precisely into a highly elliptical Earth orbit with a perigee (nearest point to Earth) of 250 km and an apogee (farthest point to Earth) of 23,500 km with an inclination of 19.2 degree with respect to the equator. LPSC delivered PS2 & PS4 Stages and five Control Power Plants (PS1 RCS x 2 Nos., PS1 SITVC, PS0 SITVC x 2 Nos.) for the PSLV C25. The details of above deliverables are:

  • PS2 Stage: The Stage is powered by Vikas Engine producing a thrust of 80t and has a propellant loading of 42t. The PS2 Stage operated for about 150s in this mission.
  • PS4 Stage: It is powered by two PS4 engines each 0.73t thrust and 2.5t propellant loading.

The control power plants provide the necessary control of the Vehicle (viz. Pitch, Yaw and Roll) during the PS1 regime. Two numbers of Roll Control System Packages, 2 Strap on SITVC (Side Injection Thrust Vector Control) systems and one PS1 SITVC system were used in this mission.

Bipropellant propulsion system of eight nos. of 22N AOCS thrusters and one LAM engine were delivered and integrated by LPSC for Mars Orbiter Mission (MOM).

The MOM spacecraft spent about a month in Earth orbit, where it made a series of seven apogee-raising orbital manoeuvres using the LAM engine before trans-Mars injection on 30 th November, 2013. After a 298-day transit to Mars, it was put into Mars orbit on 24th September, 2014. In this mission LAM engine was fired after 295 days of hibernation.

Astrosat Mission:

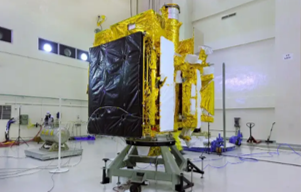

AstroSat is India's first dedicated Space Astronomy Observatory launched by PSLV-C30 (XL). It carries a total of five scientific payloads enabling imaging, studying temporal and spectral properties of galactic and extra- galactic cosmic sources in a wide range of wavelengths on a common platform.


Astrosat

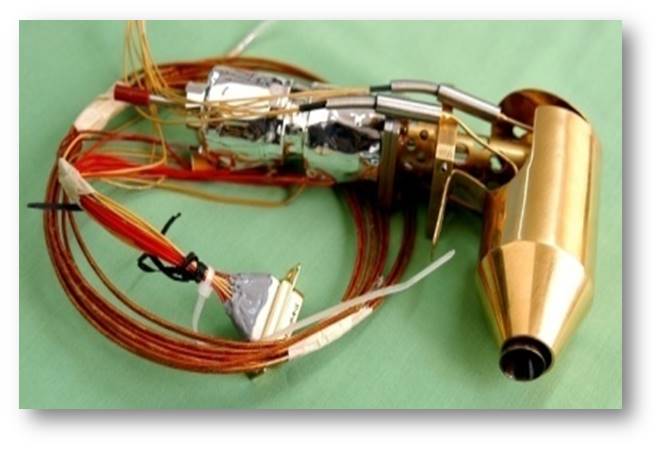

11N Monopropellant Thruster for Astrosat
Major Contributions from LPSC:

PSLV C30


The PSLV C30 placed the Astrosat spacecraft precisely into a 650 km orbit of 6 deg inclination to the equator. LPSC delivered PS2 & PS4 Stages and five Control Power Plants (PS1 RCS x 2 Nos., PS1 SITVC, PS0 SITVC x 2 Nos.) for the PSLV C30. The details of above deliverables are:

  • PS2 Stage: The Stage is powered by Vikas Engine producing a thrust of 80t and has a propellant loading of 42t. The PS2 Stage operated for about 150s in this mission.
  • PS4 Stage:It is powered by two PS4 engines each 0.73t thrust and 2.5t propellant loading.

The control power plants provide the necessary control of the Vehicle (viz. Pitch, Yaw and Roll) during the PS1 regime. Two numbers of Roll Control System Packages, 2 Strap on SITVC (Side Injection Thrust Vector Control) systems and one PS1 SITVC system were used in this mission.

Eight Nos. of 11 N monopropellant AOCS thrusters-based propulsion system for the Astrosat spacecraft was delivered and integrated for this mission by LPSC.

Chandrayaan-2 mission:

India's Geosynchronous Satellite Launch Vehicle, LVM3-M1, successfully launched Chandrayaan-2 spacecraft on 22nd July, 2019 into its planned orbit with a perigee of 169.7 km and an apogee of 45,475 km. This mission was a highly complex mission, which represents a significant technological leap compared to the previous missions of ISRO, which brought together an Orbiter, Lander and Rover with the goal of exploring south pole of the Moon.

Major Contributions from LPSC:

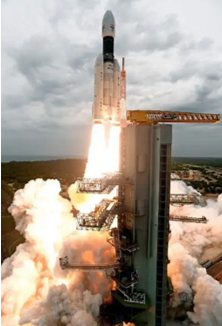

LVM3 M1
  • L110 Stage: The core liquid stage for LVM3-M1 was designed, developed and realized by LPSC. This Stage is loaded with ~ 114t of Earth Storable propellants (N2O4 and UH25) and powered by twin Vikas Engines.
  • C25 Stage:The terminal stage of LVM3 was also designed, developed and realized by LPSC. This Stage is loaded with 28.5t of Cryogenic Propellants viz. Liquid Hydrogen and Liquid Oxygen, which are stored in the propellant tank at 77K and 20K respectively.
  • Fluid Control Components: Fluid control components and modules for S200 Solid Stage's Flex Nozzle Control (FNC) system and sit-on umbilicals used for servicing the S200 FNC system etc. were designed & realised by LPSC.
  • Orbiter Module propulsion system: Chandrayaaan-3 Propulsion Module with one 440N LAM engine and eight 22N thrusters was configured by LPSC with Propellant tanks and flow control components. The LAM engine in the Orbiter was successfully fired 11 times for a cumulative duration of 10171 s. Chandrayaan-2 orbiter and lander propulsion systems were delivered by LPSC. The Orbiter has a life of in excess of 7 years due to excellent performance of liquid propulsion systems.
  • Lander Module Propulsion system: The bipropellant throttleable lander propulsion system for Chandrayaan-2 mission included Four 800 N throttleable engine, one 800N thrust central engine, eight nos. of 58 N thrusters. The Lander propulsion system also include the throttleable Engine Flow Control Valve (TFCV) and Throttleable Engine Control Electronic Module (TECEM), which was designed and developed by LPSC. Extensive testing of the engines along with the TFCV & TECEM was carried out for qualification of these systems.

Chandrayaan-2

Chandrayaan-2 mission is a highly complex mission, which represents a significant technological leap compared to the previous missions of ISRO. It comprised an Orbiter, Lander and Rover to explore the unexplored South Pole of the Moon. After the injection of Chandrayaan-2, a series of maneuvers were carried out to raise its orbit and on 14th August, 2019, following Trans Lunar Insertion (TLI) maneuver, the spacecraft escaped from orbiting the earth and followed a path that took it to the vicinity of the Moon. On 20th August, 2019, Chandrayaan-2 was successfully inserted into lunar orbit. While orbiting the moon in a 100 km lunar polar orbit, on 2nd September, 2019, Vikram Lander was separated from the Orbiter in preparation for landing. Subsequently, two de-orbit maneuvers were performed on Vikram Lander so as to change its orbit and begin circling the moon in a 100 km x 35 km orbit. Vikram Lander descent was as planned and normal performance was observed upto an altitude of 2.1 km. Subsequently communication from lander to the ground stations was lost.

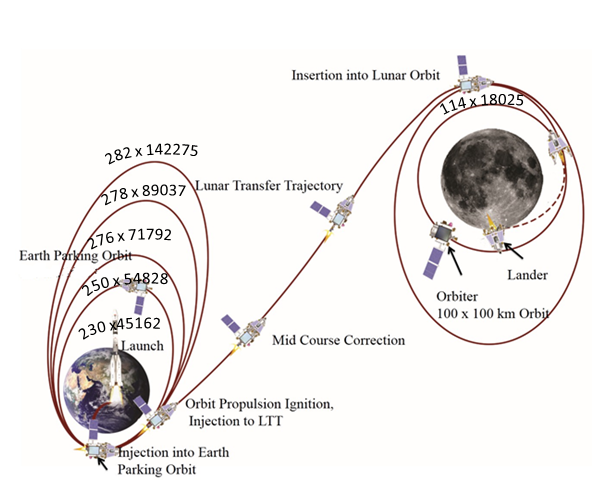

Chandrayaan-2 Orbit changes

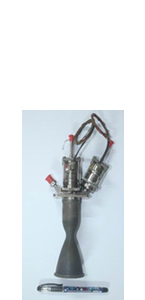

58N thruster for
Chandrayaan-2 & CH-3

440N LAM Engine

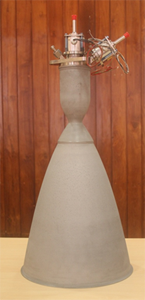

800N Engine

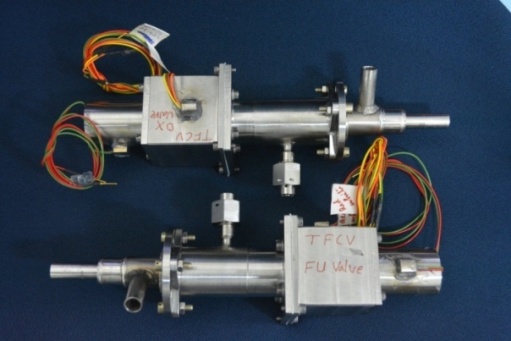

TFCV

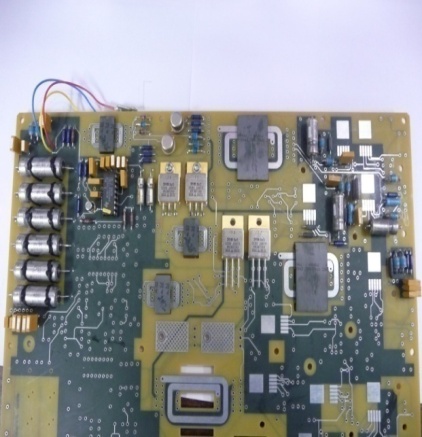

TECEM

Chandrayaan-3 Mission:

ISRO's third lunar exploration mission, Chandrayaan-3 embarked on its journey aboard LVM3-M4 launcher achieved a soft landing on the lunar surface with the Vikram lander, followed by demonstration of rover mobility on the challenging lunar terrain. This historic achievement made India the first country to soft land near south pole of moon.

Scientific payloads are included in the Lander, Rover & Propulsion Module for carrying out various experiments on the moon surface.


L110 Stage

In addition, Vikram Lander underwent a hop experiment. On command, it fired the engines, elevated itself by about 40 cm and landed safely at a distance of 30-40 cm away. In another unique experiment, the Propulsion Module of Chandrayaan-3 was moved from an orbit around Moon to an orbit around Earth.

Major contributions from LPSC:
  • L110 Stage: The core liquid stage for LVM3-M4 was designed, developed and realized by LPSC. This Stage is loaded with ~ 114t of Earth Storable propellants (N2O4 and UH25) and powered by twin Vikas Engines.
  • C25 Stage:The terminal stage of LVM3 was also designed, developed and realized by LPSC. This Stage is loaded with 28.5t of Cryogenic Propellants viz. Liquid Hydrogen and Liquid Oxygen, which are stored in the propellant tank at 77K and 20K respectively
  • Fluid Control Components: Fluid control components and modules for S200 Solid Stage's Flex Nozzle Control (FNC) system and sit-on umbilicals used for servicing the S200 FNC system etc. were designed & realiased by LPSC .
  • Propulsion Module:Chandrayaaan-3 Propulsion Module with one 440N LAM engine and eight 22N thrusters was configured by LPSC with two numbers of 780 litre Titanium Alloy propellant tanks holding about 1.7t of propellant (MON-3 and MMH).
  • Propulsion system for the Lander: LPSC has also developed propulsion system for Lander 800N throttleable engines (having throttling capability upto 360N), eight 58N thrusters, two 470 litre propellant tanks (holding 1.04t of MON-3 and MMH as propellants).
  • In order to reach the lunar orbit of 100 km, 10 LAM engine maneuvers (5 earth bound burns, 1 Trans-Lunar Injection, 1 Lunar Orbit Injection and 3 lunar bound burns), 2 AOCS maneuvers and 1 Trajectory Correction Maneuver with AOCS were carried out. AOCS fired for a total duration of 5172s till separation.
  • Lander propulsion system performance in De-boost and power descent enabled precise soft landing of Lander on 23rd August, 2023. After soft landing, the Rover descended from the lander and moved about 100 m away and carried out vital scientific experiments. Subsequently, on 3rd September, a Hoping experiment using two numbers of 800N engines (thrust level 700N) conducted successfully and the lander lifted and moved for about 40 to 45 cm away.

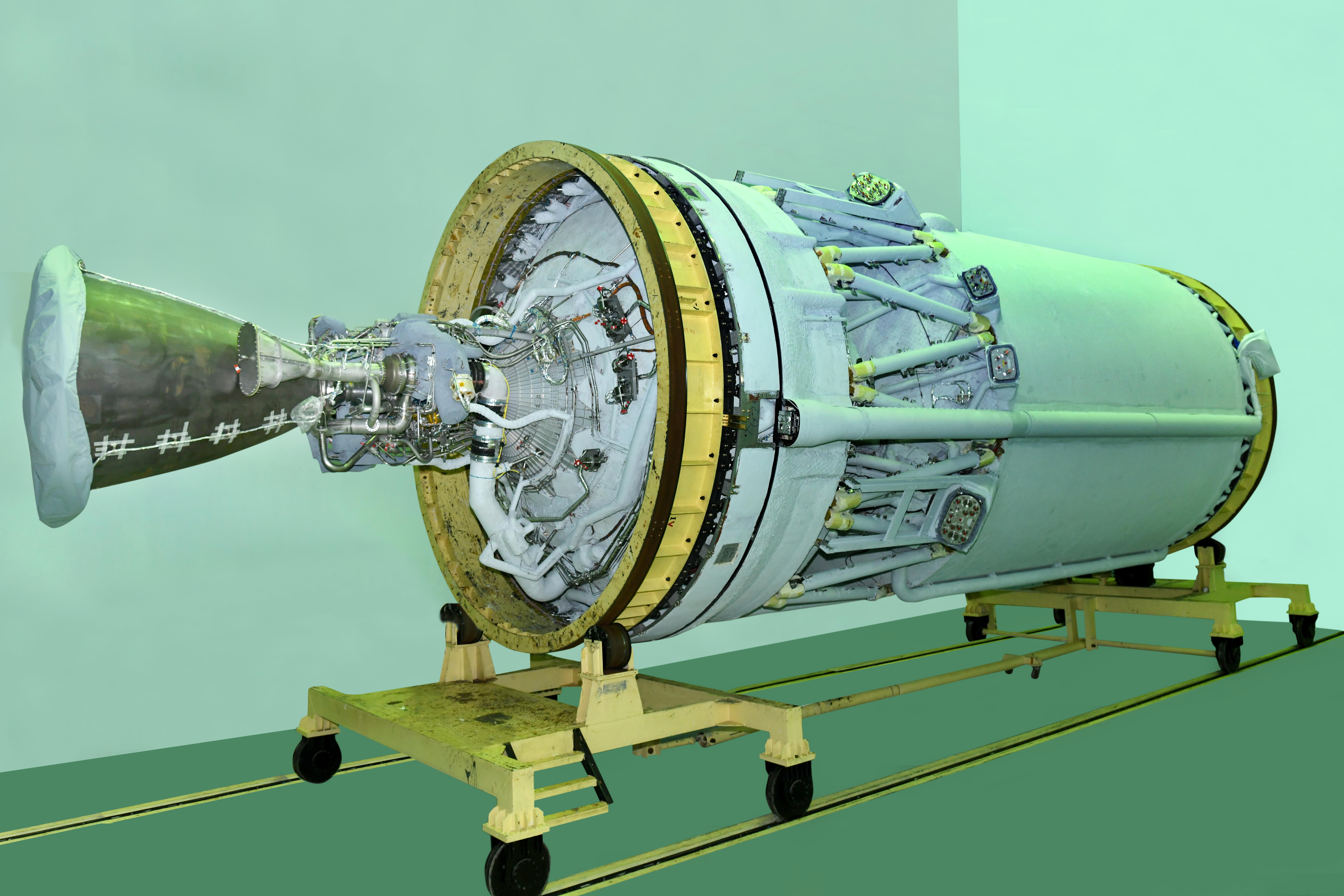

C25 Stage

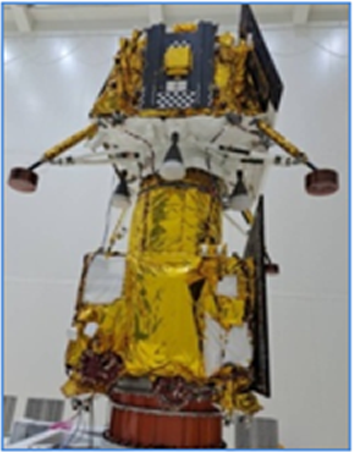

Propulsion Module with Lander

58N thruster for
Chandrayaan-2 & CH-3

440N LAM Engine

800N Engine

The Lander propulsion system including the throttleable Engine Flow Control Valve (TFCV) and Throttleable Engine Control Electronic Module (TECEM) was conceived, designed and developed by LPSC. Extensive testing of the engines along with the TFCV & TECEM was carried out independently & in integrated mode. The propulsion system for Propulsion Module has the heritage of Spacecraft propulsion system.


TFCV

TECEM

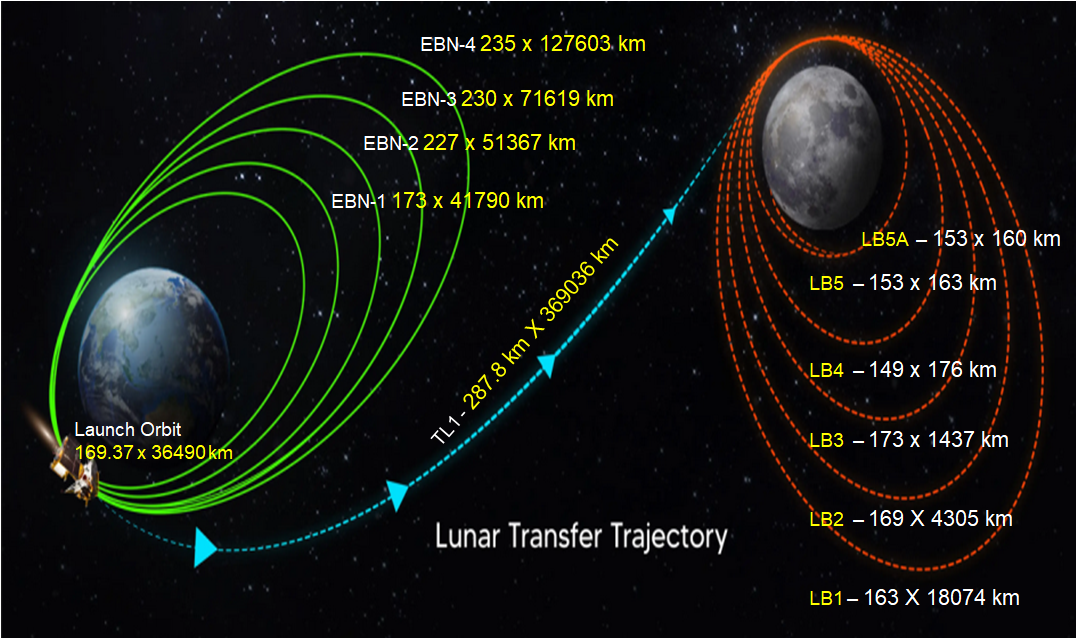

Chandrayaan-3 Orbit changes

CH3 IHTM Dynamic Test

Aditya-L1 Mission:

Aditya L1 mission placed the spacecraft in a halo orbit around the Lagrangian point 1 (L1) of the Sun-Earth system, which is about 1.5 million km from the Earth. The payloads are meant to observe the photosphere, chromosphere, and the outermost layers of the Sun (the corona), using electromagnetic and particle and magnetic field detectors. The spacecraft carries seven scientific payloads for systematic study of the Sun.

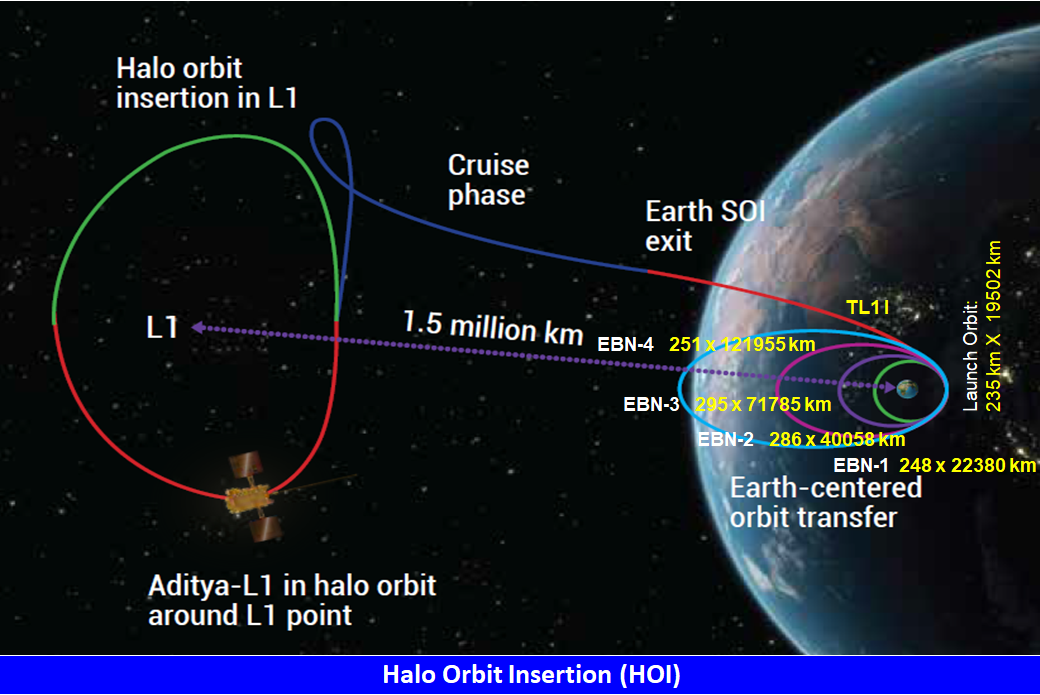

Aditya L1 Orbit changes
Major contributions from LPSC:

The PSLV C57 placed the Aditya-L1 satellite precisely into its intended orbit of 239.2km x 19520 km on 02.09.2023. LPSC delivered PS2 & PS4 Stages and five Control Power Plants (PS1 RCS x 2 Nos., PS1 SITVC, PS0 SITVC x 2 Nos.) for the PSLV C57. The details of above deliverables are:

  • PS2 Stage: The Stage is powered by Vikas Engine producing a thrust of 80t and has a propellant loading of 42t. The PS2 Stage operated for about 150s in this mission.
  • PS4 Stage:It is powered by two PS4 engines each 0.73t thrust and 2.5t propellant loading. The stage had restart capability and had operated for 27.86s in its first burn followed by 471.5 s in its second burn. The Stage had a long coasting period of 1640s between the burns.


PSLV C57

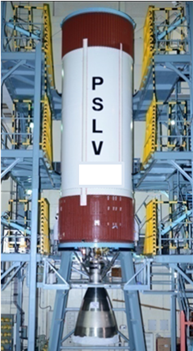

PS2 Stage

Reaction Control System (RCS)

PS4 Stage

CPP-SITVC

Major Deliverables of Liquid Propulsion Systems Centre for PSLV C57
The control power plants provide the necessary control of the Vehicle (viz. Pitch, Yaw and Roll) during the PS1 regime. Two numbers of Roll Control System Packages, 2 Strap on SITVC (Side Injection Thrust Vector Control) systems and one PS1 SITVC system were used in this mission.

  • Bipropellant based Spacecraft Propulsion system: The Spacecraft Propulsion System consisting of primarily one LAM engine, 8 numbers of 22N, 4 numbers of 10N thrusters and associated propulsion elements like 390L propellant tanks, precision control components etc.
  • In addition, the Centre had also delivered 220 numbers of critical sensors which were used in both Launch Vehicle and Spacecraft.

LAM Engine

22N AOCS thruster

10N AOCS thruster

  • Spacecraft propulsion system performance was as expected during the successful four Earth-bound manoeuvres for cumulative duration of 2715.3s followed by Trans-Lagrangean point1 (L1) Insertion for a duration of 590.5s.
  • A Trajectory Correction Maneuver (TCM) was performed on 5th October, 2023 to ensure that the spacecraft is on its intended path towards the Halo orbit insertion around L1. Final insertion to Halo Orbit planned on 7th January, 2024. Thus India's first solar observatory is in its journey to the destination of Sun-Earth L1 point (1.5 million km away from Earth, directed towards the Sun, which is about 1% of the Earth-Sun distance) using the Spacecraft propulsion system delivered by LPSC.

X-ray Polarimeter Satellite (XPoSat)

XPoSat (X-ray Polarimeter Satellite) is the first dedicated scientific satellite from ISRO to carry out research in space-based polarisation measurements of X-ray emission from celestial sources. The Satellite configuration is modified from the IMS-2 bus platform. The Configuration of the mainframe systems are derived based on the heritage of IRS satellites. It carries two payloads namely POLIX (Polarimeter Instrument in X-rays) and XSPECT (X-ray Spectroscopy and Timing).


Major Contributions from LPSC:

PSLV-C58 has launched XPOSAT Satellite into an Eastward low inclination orbit on 1st January, 2024 09:10 Hrs IST.

LPSC delivered PS2 & PS4 Stages and five Control Power Plants (PS1 RCS x 2 Nos., PS1 SITVC, PS0 SITVC x 2 Nos.) for the PSLV C58. The details of above deliverables are:

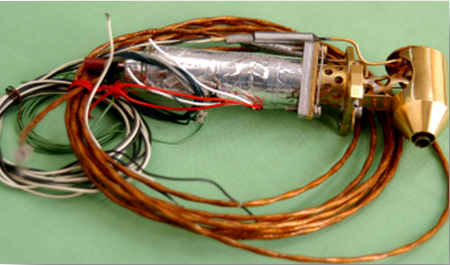

1N monopropellant AOCS thruster
  • PS2 Stage: The Stage is powered by Vikas Engine producing a thrust of 80t and has a propellant loading of 42t. The PS2 Stage operated for about 150s in this mission.
  • PS4 Stage: It is powered by two PS4 engines each 0.73t thrust and 2.5t propellant loading. After injection of XPOSAT, the PS4 stage was re-started twice to reduce the orbit into 350 km circular orbit to maintain in 3-axis stabilized mode for Orbital Platform (OP) experiments. LPSC also delivered and integrated the Orbital Platform Attitude Control thrusters (OPACS) also for this mission. The PSLV Orbital Experimental Module-3 (POEM-3) experiment was executed meeting the objective of 10 identified payloads, delivered and integrated by ISRO and IN-SPACe.
  • Control Power Plants (CPP): The control power plants provide the necessary control of the Vehicle (viz. Pitch, Yaw and Roll) during the PS1 regime. Two numbers of Roll Control System Packages, 2 Strap on SITVC (Side Injection Thrust Vector Control) systems and one PS1 SITVC system were used in this mission.
  • Spacecraft Propulsion system: Eight Nos. of 1N monopropellant AOCS thrusters-based propulsion system for the XPoSat spacecraft was delivered and integrated for this mission by LPSC.
